Digital Conferencing System
ITC
- 10 Channel Paging Selector and Speaker Selector
- Music channel plus paging/EMC channel
- CAT 5 cable system
- Remote Zone Paging Console with T-6212(A)
- Max 160 zone
- CAT 5 cable system
- Mixer Pre-amplifier
- 5 mic input, 3 aux
- AC 230V and DC 24V
- CD Player
- USB & SD
- 1U height
- CD/MP3 Player with AM/FM Tuner
- With USB/SD
- 1U height
- Fire Alarm and Recorder Panel
- 5" Ceiling Speaker
- 1.5W-3W-6W, 100V,
- cutout 175mm
- Metal grille & baffle
- 5"+1.5" Two way wall mount speaker
- 30W, 100V
- ABS body
- Metal grille
- Metal bracket
- Black
- Outdoor Paging Horn Speaker
- 15W-30W, 100V
- IP66, ABS body
- metal bracket
- Outdoor Paging Horn Speaker
- 7.5W-15W, 100V
- IP66, ABS body
- metal bracket
- Indoor Pendant Speaker
- 6W, 100V
- 5", ABS
- Outdoor Column Speaker
- 30W, full range
- Aluminum
- Outdoor Column Speaker
- 5W-10W, 100V
- aluminium body
- IP56
- Volume Control 60W
- Volume Control 100W, with relay
- Hand-clip Condenser mic
TOA
- A dedicated battery charger for the BP-900 used in the Chairman Units, and Delegate Units.
- Permits up to 8 batteries to be simultaneously charged within up to 5 hours.
- Rechargeable lithium-ion battery
- Designed for exclusive use with the conference units TS-801, TS-802, TS-901, and TS-902.
- Designed microphone for exclusive use with the conference units of the Infrared Conference system.
- Ring type In-Use lamp located at the microphone head
- Permits displaying the operation status of the conference units.
- Designed microphone for exclusive use with the conference units of the Infrared Conference system.
- Ring type In-Use lamp located at the microphone head
- Permits displaying the operation status of the conference units.
- Designed microphone for exclusive use with the conference units of the TS-780 series Conference system.
- Ring type In -Use lamp located at the microphone head
- Permits displaying the operation status of the conference units.
- Designed microphone for exclusive use with the conference units of the TS-780 series Conference system.
- Ring type In -Use lamp located at the microphone head permits displaying the operation status of the conference units.

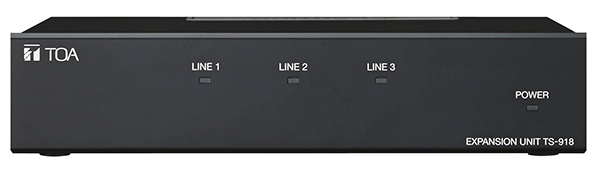

- An interface necessary for incorporating the Wired conference unit(s) in the conference system.
- It is connected to the TS- 910 Central unit with a coaxial cable and to the TS-919B1 or TS- 919B4 Bridge unit with a Category 5 cable. With the use of an optional rack mounting bracket, it can be mounted in an EIA Standard “equipment rack (1 unit size)
- Delegate unit with voting function that can be connected to the conference system by a cable.
- TS-912 is directly connected to the TS-919B1 or TS-919B4 Bridge unit, then to the TS- 910 Central unit via the TS-918 Expansion unit. Either the standard type or long type can be selected for the microphone.
- Chairman unit with voting function that can be connected to the conference system by a cable.
- Equipped with a priority switch, allowing speech to take precedence over the Delegate unit.
- Directly connected to the TS-919B1 or TS-919B4 Bridge unit, then to the TS-910 Central unit via the TS-918 Expansion unit.
- Either the standard type or long type can be selected for the microphone.
- An Infrared Transmitter/Receiver of the Infrared Conference system.
- Easily installed and removed
- Communications between the TS-905 and conference units are performed by means of infrared signals and the TS-905 permits transmit and receive with the Central unit.
- Can be mounted not only to the ceiling and wall but on the microphone stand.
- Delegate unit of the Infrared Conference system. Since the system is cordless
- Easily installed and removed. It can be operated on either the AD-0910 AC adapter (optional) or the BP-900 lithium-ion battery (optional).
- It is equipped with a remaining battery indicator.
- Two types of dedicated microphones are made available for the TS-902 as optional products: the TS-903 standard type and the TS-904 long type.
- Chairman unit of the Infrared Conference system.
- can be easily installed and removed. The Chairman unit features a priority speech key which allows it to take precedence over the TS-902 Delegate units (optional) when speaking
- can be operated on either the AD-0910 AC adapter (optional) or the BP-900 lithium-ion battery (optional). It is equipped with a remaining battery indicator.
- Two types of dedicated microphones are made available for the TS-901 as optional products: the TS-903 standard type and the TS-904 long type.

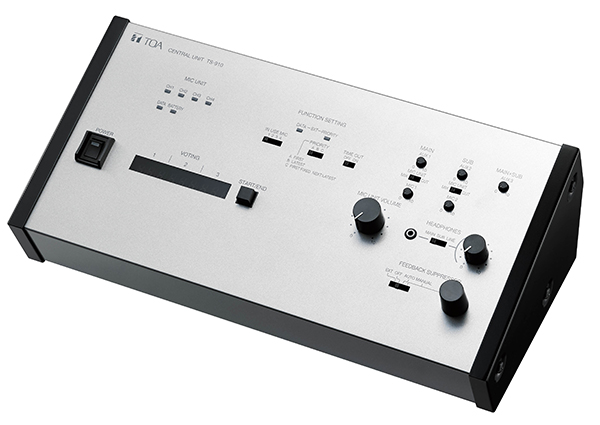

- Central unit of the Integrated conference system designed for use with both the Wired and Infrared conference units in combination
- Up to 192 Wired and Infrared Conference units in total can be used per system
- External control, voting result confirmation, and equipment installation confirmation can be performed on a PC.
- 2 channels of audio signal lines are provided for base language and translation language.
- Delegate unit of the Infrared Conference system.
- Since the system is cordless, it can be easily installed and removed.
- It can be operated on either the AD-0910 AC adapter (optional) or the BP-900 lithium-ion battery (optional).
- It is equipped with a remaining battery indicator.
- Two types of dedicated microphones are made available for the TS-802 as optional products: the TS-903 standard type and the TS-904 long type.

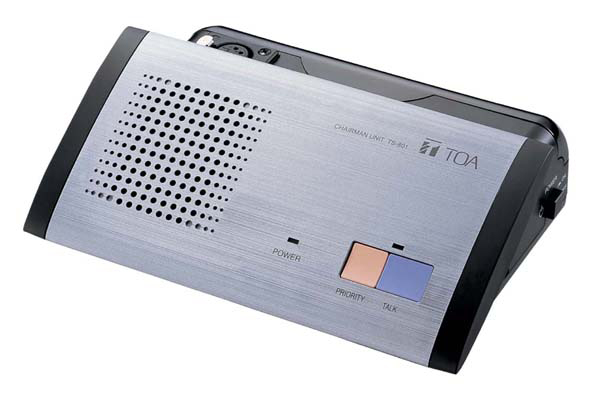

- Chairman unit of the Infrared Conference system.
- Since the system is cordless, it can be easily installed and removed.
- The Chairman unit features a priority speech key which allows it to take precedence over the TS-802 Delegate units (optional) when speaking.
- It can be operated on either the AD-0910 AC adapter (optional) or the BP-900 lithium-ion battery (optional).
- It is equipped with a remaining battery indicator.
- Two types of dedicated microphones are made available for the TS-801 as optional products: the TS-903 standard type and the TS-904 long type.
- Central unit of the Infrared Conference system.
- Since the system is cordless, it can be easily installed and removed based on a free layout.
- Connecting the TS-800 to the Transmitter/Receiver units permits control of the conference units.
- It features control function from a PC (The control software is not attached.), and installation confirmation function that confirms the connection status for the Transmitter/Receiver units and installation status for the conference units.
- With the use of an optional rack mounting bracket, it can be mounted in an EIA Standard equipment rack (4 units size).
- Delegate unit for TOA Conference system with compact and lightweight design
- easy to install and store. Placing the speech button in the ON position permits speech and disables the speaker to prevent feedback. If the speech button is placed in the OFF position, the microphone cannot be used but the speaker is turned on,
- allowing the voices from other conference units to be monitored.
- Two types of dedicated microphones are made available for the TS-772 as optional products: the TS-773 standard type and the TS-774 long type.
- A Chairman unit for TOA Conference system with compact and lightweight design
- Easy to install and store
- Allows a chairman to speak and disables the speaker to prevent feedback by pressing ON/ OFF positions
- Allows a chairman to take precedence over any delegate units by pressing the priority button
- Two types of dedicated microphones are made available for the TS-771 as optional products: the TS-773 standard type and the TS-774 long type.
- A Central unit for TOA Conference system with compact design
- Easy to install and store
- Use of its line connection terminals permits connections to the conference units
- Up to 3 Central units can be connected.
- Number of connectable conference units -n 70 (Max. 35 units per line)
- Power Consumption is Max. 60 W
